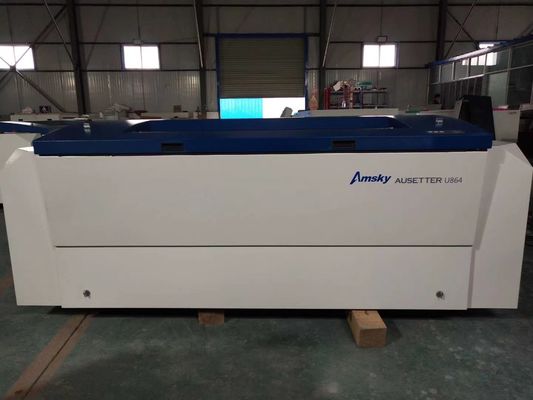

UV computer board making machine, CTCP computer board making machine, UV type CTP machine,
Computer plate making machine (CTP machine, CTCP machine)
The plate making adopts the most advanced and latest fiber laser, and the imaging is accurate and fast.
For plate making machines, our company has new and old machines. CTP machines and CTCP machines, split or conjoined. Choose different machines according to customer requirements.
A conventional computer plate-making machine requires a 50-square-meter room to place the machine. Keep the interior clean and tidy at all times.
Brand new machine, two years warranty, all parts are factory made.
Second-hand machine warranty for one year. Before delivery, my engineer will do three detailed inspections, replace damaged parts, and give customers a different feeling. Let customers get the best.
Basic parameters of the machine:
Maximum production size: 1130*880mm,
Minimum production size: 400*350mm
Applicable sheet model: 0.15 thickness -0.4 thickness.
Resolution: 2,400dpi or 1,200dpi optional 2,540dpi or 1,270dpi (variable resolution option: the highest precision can reach 12,800dpi in the circumferential direction)
Repeatability: ±0.01mm
Output interface: optical fiber interface
Environment: allowable temperature: 15-32℃, recommended temperature: 21-28℃, relative humidity: <70%
Applicable: CTP plate, CTCP plate and double layer CTP plate.
Different models of machines have different production times and speeds.
The plate making precision is very high.
Chuangda (Shenzhen) Printing Equipment Co., Ltd
www.cd-printing.com
